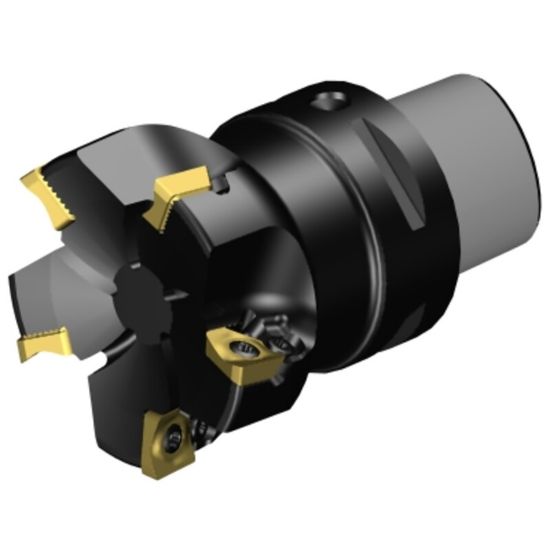

Picture of SANDVIK R590-063C5-11M, CoroMill Century Square Shoulder Milling Cutter, 63mm Cutting Diameter

SANDVIK R590-063C5-11M, CoroMill Century Square Shoulder Milling Cutter, 63mm Cutting Diameter

ANSI: R590-063C5-11M

ISO: R590-063C5-11M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5747717
Delivery date: 3-5 days
$1,338.54
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Machine Side Connection Type PSC "Capt0 Type"
Tool Material Steel
Flutes/Inserts 5
Overall Len 2.4800 62.99MM
Machine Side Connection Size 1.9685 50.00MM
Shank/Pilot Dia 1.9685 50.00MM
Depth Of Cut Max 0.4330
Cutting & Machining Properties
Insert Style R590
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Cool Sply Type Internal
