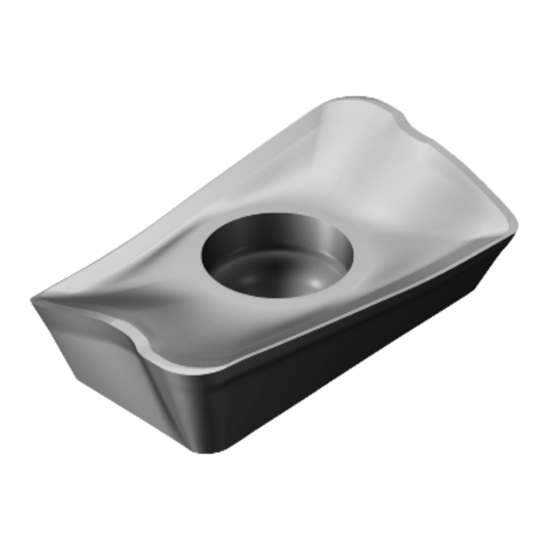

Picture of SANDVIK R390-17 04 08M-Powder Metal 530 CoroMill 390 Insert; 90 degree shoulder Milling

SANDVIK R390-17 04 08M-Powder Metal 530 CoroMill 390 Insert; 90 degree shoulder Milling

ANSI: R390-17 04 08M-PM 530

ISO: R390-17 04 08M-PM 530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5746122
Delivery date: 3-5 days
$16.38

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

R390-17 04 08M-PM 530 Sandvik CoroMill 390, Cermet Insert for Milling, Uncoated

Grade and Coating Description

CERMET FOR STEEL AND STAINLESS

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Milling Insert
Grade 530
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert Application Medium
Package Size 10
Dimensional Specifications
Depth Of Cut Max 0.6299
Corner Radius 0.0320 0.81MM
Cut Rating <40HRC Steel, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Left
