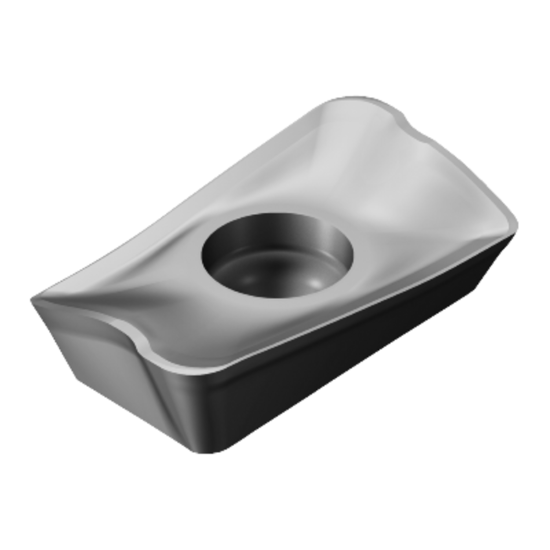

Picture of SANDVIK R390-17 04 04M-Powder Metal 530 CoroMill 390 Insert; 90 degree shoulder Milling

SANDVIK R390-17 04 04M-Powder Metal 530 CoroMill 390 Insert; 90 degree shoulder Milling

ANSI: R390-17 04 04M-PM 530

ISO: R390-17 04 04M-PM 530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5745630
Delivery date: 3-5 days
$16.38

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

R390-17 04 04M-PM 530 Sandvik CoroMill® 390, Cermet Insert for Milling, Uncoated

Grade and Coating Description

CERMET FOR STEEL AND STAINLESS

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Medium
Package Size 10
Insert/Tool Insert
Application Milling Insert
Made In USA No
Shipping State Illinois
Grade 530
Insert Type Positive
Dimensional Specifications
Cut Rating <40HRC Steel, Stainless Steel
Depth Of Cut Max 0.6181
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Insert Style R390
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape Parallelogram
Cutting Edge Mat Cermet
