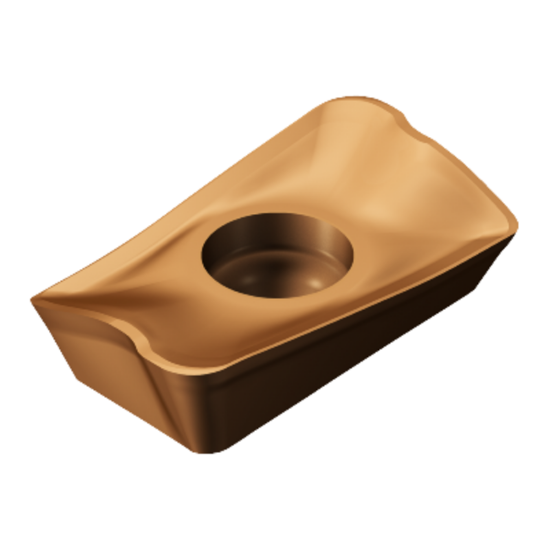

Picture of Sandvik R390-11 T3 08E-ML S30T CoroMill 390 Insert; 90 degree shoulder Milling

Sandvik R390-11 T3 08E-ML S30T CoroMill 390 Insert; 90 degree shoulder Milling

Part Number: SAN5853466 ISO: R390-11 T3 08E-ML S30T ANSI:R390-11 T3 08E-ML S30T
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1191159
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

SANDVIK 5853466 Parallelogram Insert Positive TiAIN2 S30T has been developed with productive titanium milling in focus. It combines the properties of micro-grain carbide and a wear resistant PVD coating. This enables very sharp cutting edges that resist fatigue and micro-chipping and results in cutting edges that are preserved for longer times in cut at higher cutting speeds.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Finishing
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Hand Right Hand
Geometry & Angles
Corner Radius 0.0320 0.81MM
Performance & Capacity
Cut Rating High Temp
Depth Of Cut Max 0.3937
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAIN2
Grade S30T
Compatibility & Fit
Insert Fits Parallelogram
Standards & Identification
ISO Space R390 11 T3 08E ML S30T
