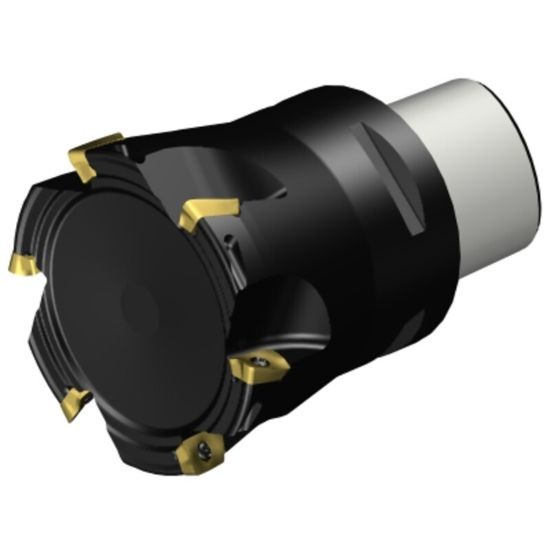

Picture of SANDVIK R390-063C5-11M060, CoroMill 390 Square Shoulder Milling Cutter, 63mm Cutting Diameter

SANDVIK R390-063C5-11M060, CoroMill 390 Square Shoulder Milling Cutter, 63mm Cutting Diameter

ANSI: R390-063C5-11M060

ISO: R390-063C5-11M060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5745582
Delivery date: 3-5 days
$1,008.37
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling, Face Milling
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 1.9685 50.00MM
Tool Material Steel
Machine Side Connection Type PSC "Capt0 Type"
Depth Of Cut Max 0.6180
Shank/Pilot Dia 1.9685 50.00MM
Flutes/Inserts 5
Cutting & Machining Properties
Hand R/L Right
Cool Sply Type Internal
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
