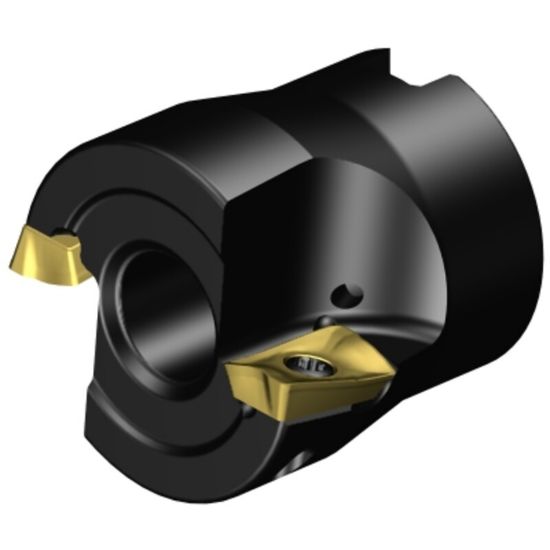

Picture of Sandvik R390-040Q16-17L, CoroMill 390 Square Shoulder Milling Cutter, 40mm Cutting Diameter

Sandvik R390-040Q16-17L, CoroMill 390 Square Shoulder Milling Cutter, 40mm Cutting Diameter

Part Number: SAN5745409 ISO: R390-040Q16-17L ANSI:R390-040Q16-17L
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1190224

Description

SANDVIK 5745409 Parallelogram 90.0°, Face Mill SHELL0.6300 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Hand Right Hand
Coolant Type External
Dimensions & Sizing
Overall Length 1.5750 40.01MM
Flutes/Inserts 2
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Depth Of Cut Max 0.6180
Materials & Finish
Tool Material Steel
