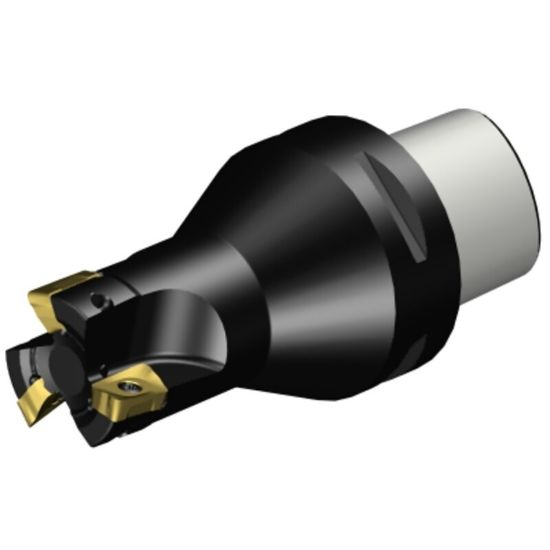

Picture of SANDVIK R390-040C6-18M100, CoroMill 390 Square Shoulder Milling Cutter, 40mm Cutting Diameter

SANDVIK R390-040C6-18M100, CoroMill 390 Square Shoulder Milling Cutter, 40mm Cutting Diameter

ANSI: R390-040C6-18M100

ISO: R390-040C6-18M100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5745403
Delivery date: 3-5 days
$607.22
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Insert Type Positive
Application Ramp Milling, Slot Milling, Face Milling, Side Milling, Pocket Milling
Package Size 1
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type PSC "Capt0 Type"
Shank/Pilot Dia 2.3622 60.00MM
Depth Of Cut Max 0.6060
Machine Side Connection Size 2.3622 60.00MM
Flutes/Inserts 3
Tool Material Steel
Overall Len 3.9370 100.00MM
Cutting & Machining Properties
Insert Style R390
Coolant Thru Yes
Hand R/L Right
Cool Sply Type Internal
Insert Shape/Cutter Pocket Shape Parallelogram
