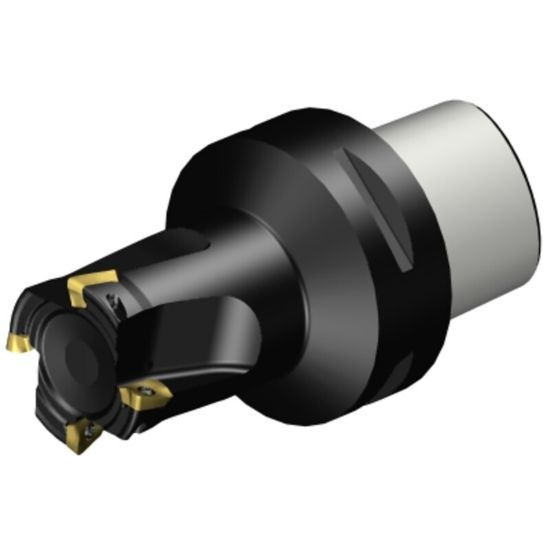

Picture of SANDVIK R390-040C6-11M080, CoroMill 390 Square Shoulder Milling Cutter, 40mm Cutting Diameter

SANDVIK R390-040C6-11M080, CoroMill 390 Square Shoulder Milling Cutter, 40mm Cutting Diameter

ANSI: R390-040C6-11M080

ISO: R390-040C6-11M080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5745402
Delivery date: 3-5 days
$672.59
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 2.3622 60.00MM
Shank/Pilot Dia 2.3622 60.00MM
Flutes/Inserts 4
Depth Of Cut Max 0.3940
Machine Side Connection Type PSC "Capt0 Type"
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Cool Sply Type Internal
