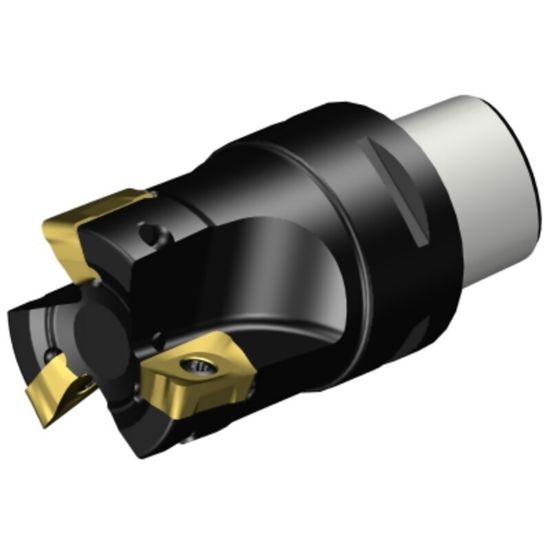

Picture of SANDVIK R390-040C4-18M060, CoroMill 390 Square Shoulder Milling Cutter, 40mm Cutting Diameter

SANDVIK R390-040C4-18M060, CoroMill 390 Square Shoulder Milling Cutter, 40mm Cutting Diameter

ANSI: R390-040C4-18M060

ISO: R390-040C4-18M060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5745415
Delivery date: 3-5 days
$607.22
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.5748 40.00MM
Overall Len 2.3620 59.99MM
Tool Material Steel
Depth Of Cut Max 0.6060
Machine Side Connection Type PSC "Capt0 Type"
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Hand R/L Right
Cool Sply Type Internal
Insert Style R390
