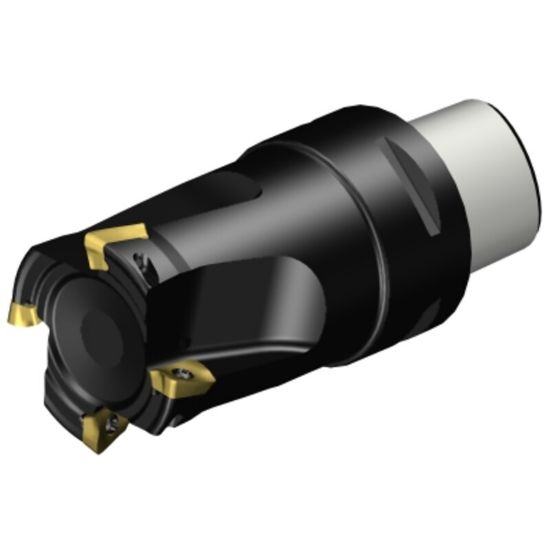

Picture of SANDVIK R390-040C4-11M, CoroMill 390 Square Shoulder Milling Cutter, 40mm Cutting Diameter

SANDVIK R390-040C4-11M, CoroMill 390 Square Shoulder Milling Cutter, 40mm Cutting Diameter

ANSI: R390-040C4-11M

ISO: R390-040C4-11M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5745414
Delivery date: 3-5 days
$672.59
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Side Milling, Pocket Milling, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Type PSC "Capt0 Type"
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 4
Depth Of Cut Max 0.3940
Machine Side Connection Size 1.5748 40.00MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Cool Sply Type Internal
Coolant Thru Yes
Insert Style R590
