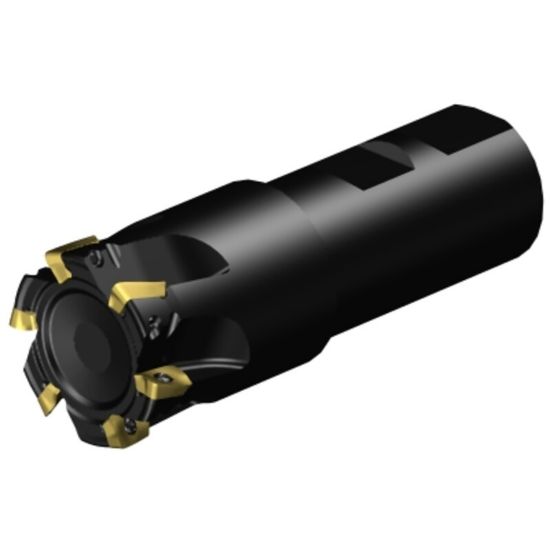

Picture of SANDVIK R390-040B32-11H, CoroMill 390 Square Shoulder Milling Cutter, 40mm Cutting Diameter

SANDVIK R390-040B32-11H, CoroMill 390 Square Shoulder Milling Cutter, 40mm Cutting Diameter

ANSI: R390-040B32-11H

ISO: R390-040B32-11H

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5745568
Delivery date: 3-5 days
$633.45
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Side Milling, Pocket Milling, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Overall Len 2.9330 74.50MM
Machine Side Connection Size 1.2598 32.00MM
Depth Of Cut Max 0.3940
Machine Side Connection Type Weldon
Flutes/Inserts 6
Tool Material Steel
Shank/Pilot Dia 1.2598 32.00MM
Cutting & Machining Properties
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Cool Sply Type Internal
Coolant Thru Yes
