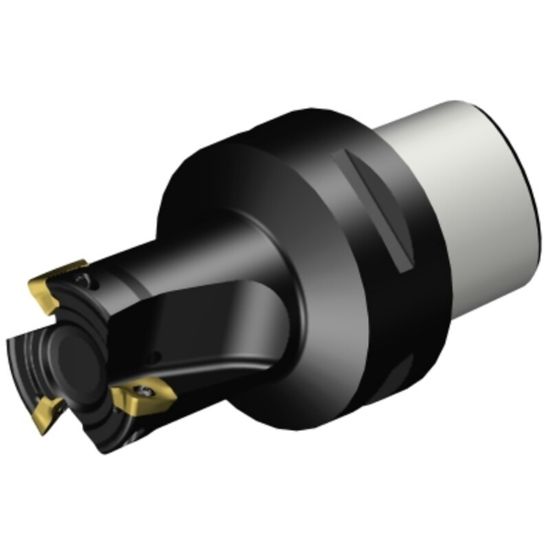

Picture of SANDVIK R390-032C5-11M, CoroMill 390 Square Shoulder Milling Cutter, 32mm Cutting Diameter

SANDVIK R390-032C5-11M, CoroMill 390 Square Shoulder Milling Cutter, 32mm Cutting Diameter

ANSI: R390-032C5-11M

ISO: R390-032C5-11M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5745505
Delivery date: 3-5 days
$615.94
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.3940
Machine Side Connection Size 1.9685 50.00MM
Shank/Pilot Dia 1.9685 50.00MM
Tool Material Steel
Machine Side Connection Type PSC "Capt0 Type"
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Cool Sply Type Internal
Insert Style R390
Coolant Thru Yes
