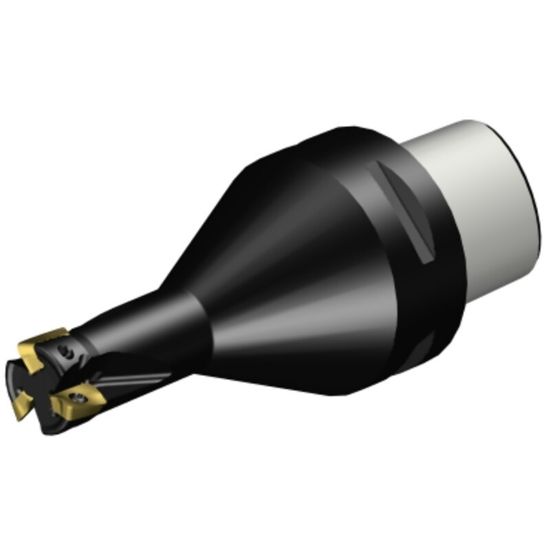

Picture of SANDVIK R390-020C5-11M095, CoroMill 390 Square Shoulder Milling Cutter, 20mm Cutting Diameter

SANDVIK R390-020C5-11M095, CoroMill 390 Square Shoulder Milling Cutter, 20mm Cutting Diameter

ANSI: R390-020C5-11M095

ISO: R390-020C5-11M095

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5745466
Delivery date: 3-5 days
$531.48
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Machine Side Connection Type PSC "Capt0 Type"
Depth Of Cut Max 0.3940
Machine Side Connection Size 1.9685 50.00MM
Shank/Pilot Dia 1.9685 50.00MM
Flutes/Inserts 3
Tool Material Steel
Cutting & Machining Properties
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Cool Sply Type Internal
Coolant Thru Yes
