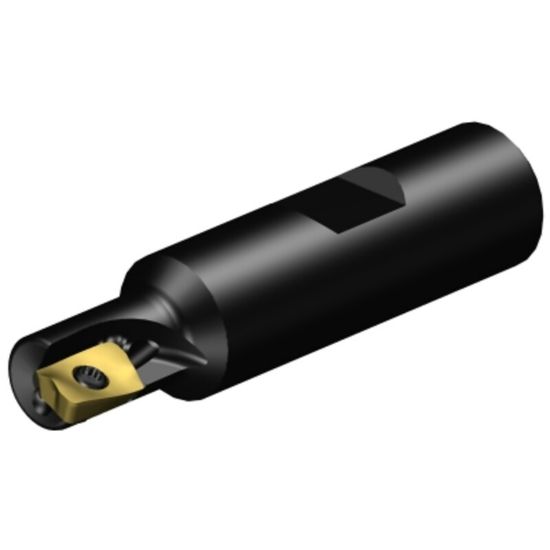

Picture of SANDVIK R390-012B16-11L, CoroMill 390 Square Shoulder Milling Cutter, 12mm Cutting Diameter

SANDVIK R390-012B16-11L, CoroMill 390 Square Shoulder Milling Cutter, 12mm Cutting Diameter

ANSI: R390-012B16-11L

ISO: R390-012B16-11L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5745382
Delivery date: 3-5 days
$365.65
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Slot Milling, Ramp Milling, Side Milling, Face Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.3940
Machine Side Connection Type Weldon
Overall Len 1.7520 44.50MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Tool Material Steel
Flutes/Inserts 1
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Cool Sply Type External
Insert Style R390
