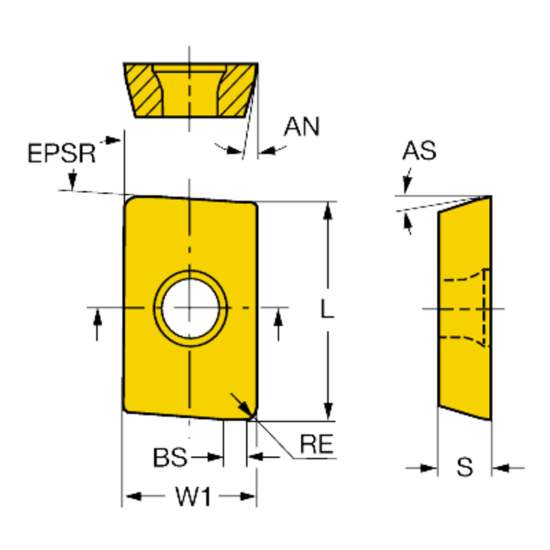

Picture of SANDVIK R215.44-15T308M-WL 4040 U-Max Insert; Face and Plunge and Longedge Milling

SANDVIK R215.44-15T308M-WL 4040 U-Max Insert; Face and Plunge and Longedge Milling

ANSI: R215.44-15T308M-WL 4040

ISO: R215.44-15T308M-WL 4040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5742774
Delivery date: 3-5 days
$21.17

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Details

R215.44-15T308M-WL 4040 Sandvik U-Max®, Carbide Insert for Milling, TiCN + Al2O3 + TiN Coating

Grade and Coating Description

CVD TiCN+Al2O3+TiN DUCTILE IRON, STEELS

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Insert Type Positive
Application Milling Insert
Made In USA No
Shipping State Illinois
Insert Application Finishing
Coating TiCN + Al2O3 + TiN
Grade 4040
Package Size 10
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron
Corner Radius 0.0320 0.81MM
Depth Of Cut Max 0.5910
Cutting & Machining Properties
Insert Style R215
Insert Shape/Cutter Pocket Shape Rectagonal
Cutting Edge Mat Carbide
Hand R/L Right
