Picture of SANDVIK R215.44-090208M-WL 4030 U-Max Insert; Face and Plunge and Longedge Milling

SANDVIK R215.44-090208M-WL 4030 U-Max Insert; Face and Plunge and Longedge Milling

ANSI: R215.44-090208M-WL 4030

ISO: R215.44-090208M-WL 4030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5742728
Delivery date: 3-5 days
$18.62

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Details

R215.44-090208M-WL 4030 Sandvik U-Max®, Carbide Insert for Milling, TiCN + Al2O3 + TiN Coating

Grade and Coating Description

CVD TiCN+Al2O3+TiN DUCTILE IRON, STEELS

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Grade 4030
Shipping State Illinois
Coating TiCN + Al2O3 + TiN
Package Size 10
Insert/Tool Insert
Application Milling Insert
Insert Application Finishing
Insert Type Positive

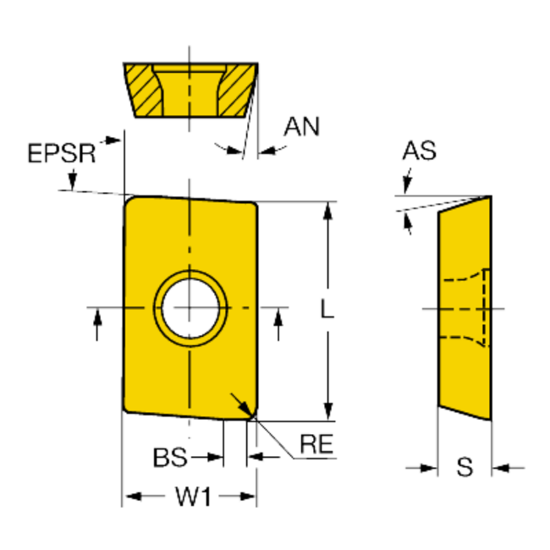

Dimensional Specifications
Corner Radius 0.0320 0.81MM
Cut Rating <40HRC Steel, Ductile Iron
Depth Of Cut Max 0.3540
Cutting & Machining Properties
Hand R/L Right
Cutting Edge Mat Carbide
Insert Style R215
Insert Shape/Cutter Pocket Shape Rectagonal
