  • SANDVIK QS-SDJCR103XHP, CoroTurn 107 QS Short Holder for QS Holding System, Right Hand, 5/8 x 5/8" Shank Stick Tool

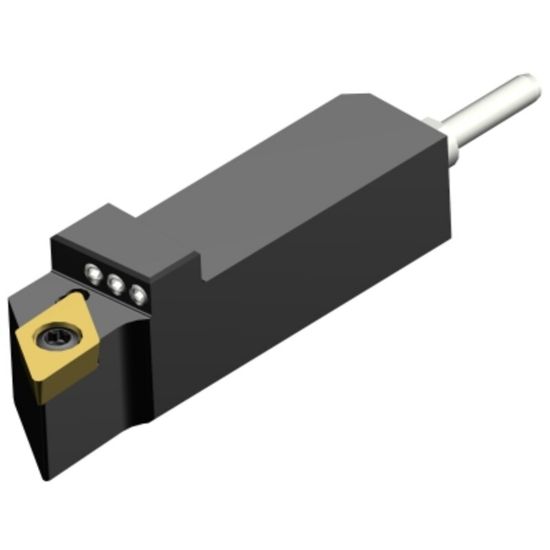

Picture of SANDVIK QS-SDJCR103XHP, CoroTurn 107 QS Short Holder for QS Holding System, Right Hand, 5/8 x 5/8" Shank Stick Tool

SANDVIK QS-SDJCR103XHP, CoroTurn 107 QS Short Holder for QS Holding System, Right Hand, 5/8 x 5/8" Shank Stick Tool

ANSI: QS-SDJCR103XHP

ISO: QS-SDJCR103XHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN6010205
Delivery date: 3-5 days
$382.13

Features And Benefits

CoroTurn 107® for general turning with high pressure coolant

Details

Sandvik QS-SDJCR103XHP, CoroTurn 107 QS Short Holder for QS Holding System, Right Hand, 5/8 x 5/8" Shank

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Clearance Angle 27.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 1.0830
Insert Size Ic 11 "32"
Machine Side Connection Size 0.6250 15.88MM
Lead Angle 93°
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Tool Width 0.6250
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Coolant Thru Yes
Hand R/L Right
Cool Sply Type Internal
