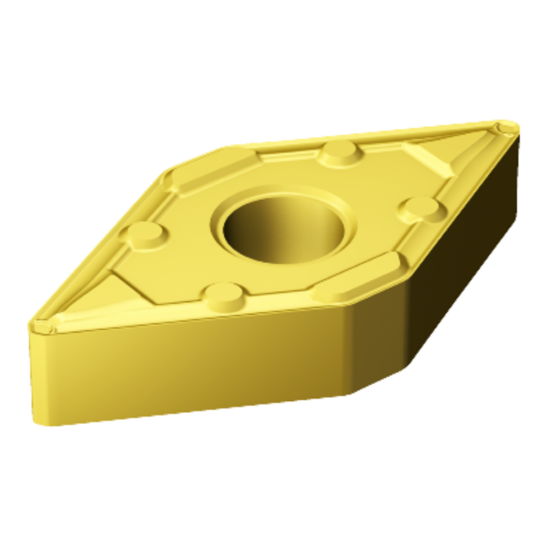

Picture of SANDVIK DNMX 442-WF 1525 Turning Insert 55.0°

SANDVIK DNMX 442-WF 1525 Turning Insert 55.0°

ANSI: DNMX 442-WF 1525

ISO: DNMX150608 WF 1525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5734631
Delivery date: 3-5 days
$23.40

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD TiCN+TiN STEEL GENERAL MACHINING

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Grade 1525
Application Turning Insert
Coating TiAIN + TiN
Package Size 10
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Insert Size Ic 15 "44"
Cut Rating <40HRC Steel, Ductile Iron
Cutting & Machining Properties
Hand R/L Neutral
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
