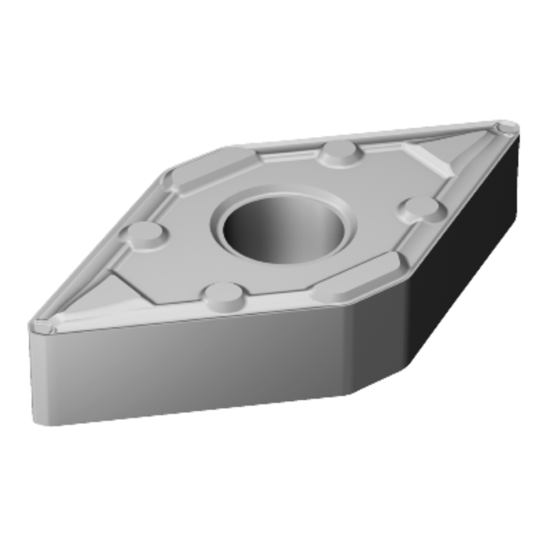

SANDVIK DNMX 332-WF 5015 Turning Insert 55.0°

ANSI: DNMX 332-WF 5015

ISO: DNMX110408 WF 5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5733124
Delivery date: 3-5 days
$17.96

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

UNCOATED CERMET FOR STEEL MACHINGING FINISHING

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Finishing
Application Turning Insert
Package Size 10
Insert/Tool Insert
Grade 5015
Dimensional Specifications
Cut Rating <48HRC Steel
Insert Size Ic 11 "33"
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Cutting Edge Mat Cermet
