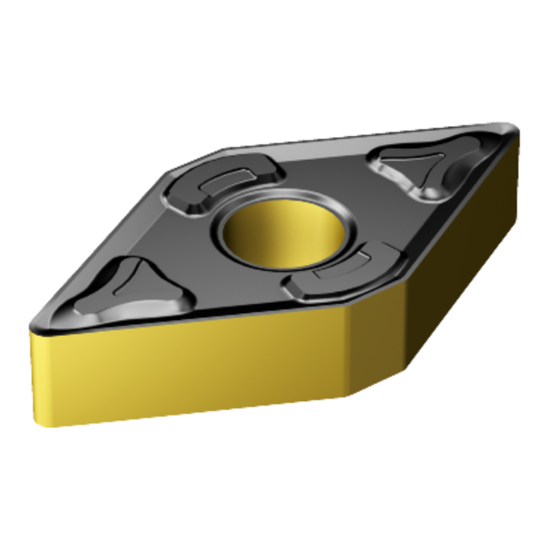

SANDVIK DNMG 443-XMR 4415 Turning Insert 55.0° TiCN + Al2O3 + TiN Carbide 0.047 Corner Radius

ANSI: DNMG 443-XMR 4415

ISO: DNMG150612 XMR 4415

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN7859305
Delivery date: 3-5 days
$23.23

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

CVD TiCN+Al2O3+TiN GREY IRON, DUCTILE IRON, STEELS.USED FOR GENERAL PURPOSE MACHINNG GOOD WEAR RESISTANCE

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN + Al2O3 + TiN
Package Size 10
Shipping State Illinois
Insert/Tool Insert
Insert Application Semi Finishing, Medium
Insert Type Negative
Application Turning Insert
Grade 4415
Made In USA No
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron
Corner Radius 0.0470 1.19MM
Insert Size Ic 15 "44"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Cutting Edge Mat Carbide
Hand R/L Neutral
