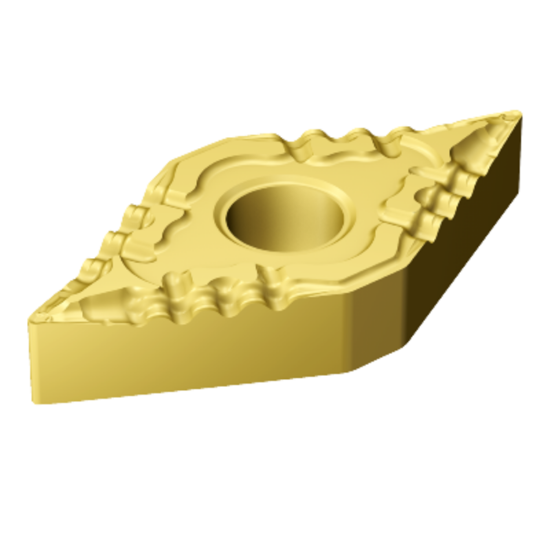

Picture of SANDVIK DNMG 441-PF 1525 Turning Insert 55.0° TiAIN + TiN Cermet 0.016 Corner Radius

SANDVIK DNMG 441-PF 1525 Turning Insert 55.0° TiAIN + TiN Cermet 0.016 Corner Radius

ANSI: DNMG 441-PF 1525

ISO: DNMG150604 PF 1525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5733978
Delivery date: 3-5 days
$20.35

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD TiCN+TiN STEEL GENERAL MACHINING

Products specifications
Attribute name Attribute value
General Product Information
Grade 1525
Shipping State Illinois
Insert/Tool Insert
Insert Type Negative
Application Turning Insert
Made In USA No
Insert Application Finishing, Semi Finishing
Coating TiAIN + TiN
Package Size 10
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron
Insert Size Ic 15 "44"
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Cutting Edge Mat Cermet
Hand R/L Neutral
Insert Style DN
