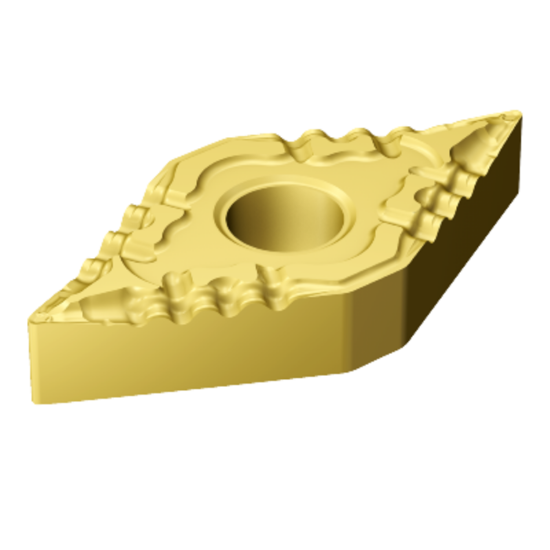

SANDVIK DNMG 332-PF 1525 Turning Insert 55.0°

ANSI: DNMG 332-PF 1525

ISO: DNMG110408 PF 1525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5734279
Delivery date: 3-5 days
$15.58

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD TiCN+TiN STEEL GENERAL MACHINING

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Coating TiAIN + TiN
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Turning Insert
Package Size 10
Grade 1525
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 11 "33"
Corner Radius 0.0320 0.81MM
Cut Rating <40HRC Steel, Ductile Iron
Cutting & Machining Properties
Cutting Edge Mat Cermet
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
