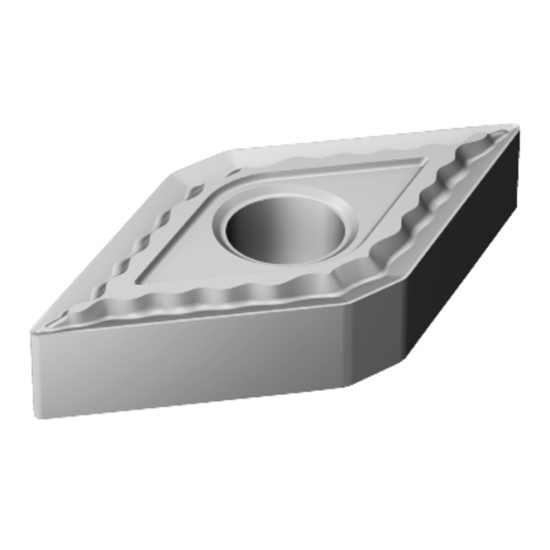

SANDVIK DNMG 331-QM 5015 Turning Insert 55.0°

ANSI: DNMG 331-QM 5015

ISO: DNMG110404 QM 5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5731871
Delivery date: 3-5 days
$15.58

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

UNCOATED CERMET FOR STEEL MACHINGING FINISHING

Products specifications
Attribute name Attribute value
General Product Information
Grade 5015
Insert/Tool Insert
Insert Type Negative
Application Turning Insert
Made In USA No
Shipping State Illinois
Insert Application Medium, Semi Finishing
Package Size 10
Dimensional Specifications
Insert Size Ic 11 "33"
Corner Radius 0.0160 0.41MM
Cut Rating <48HRC Steel
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Hand R/L Neutral
