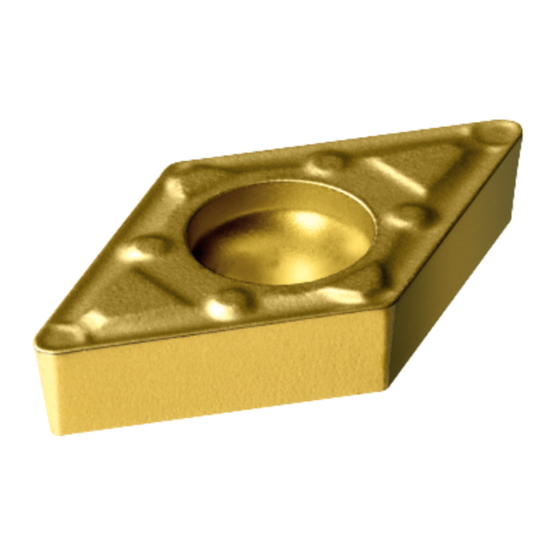

Picture of SANDVIK DCMX 2(1.5)2-WF 1525 Turning Insert 55.0° TiAIN + TiN Cermet 0.031 Corner Radius

SANDVIK DCMX 2(1.5)2-WF 1525 Turning Insert 55.0° TiAIN + TiN Cermet 0.031 Corner Radius

ANSI: DCMX 2(1.5)2-WF 1525

ISO: DCMX070208-WF 1525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5730638
Delivery date: 3-5 days
$12.02

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD TiCN+TiN STEEL GENERAL MACHINING

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Grade 1525
Coating TiAIN + TiN
Package Size 10
Insert Application Semi Finishing, Finishing
Application Turning Insert
Made In USA No
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron
Insert Size Ic 07 "21"
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Hand R/L Neutral
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Cutting Edge Mat Cermet
