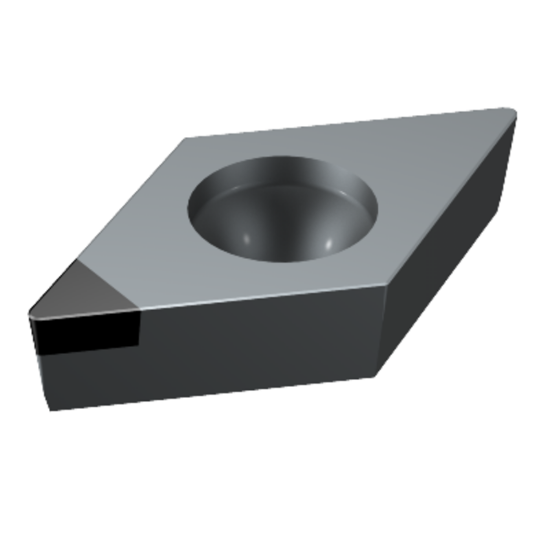

Picture of SANDVIK DCMW 3(2.5)1FP CD10 Turning Insert 55.0° PCD 0.016 Corner Radius

SANDVIK DCMW 3(2.5)1FP CD10 Turning Insert 55.0° PCD 0.016 Corner Radius

ANSI: DCMW 3(2.5)1FP CD10

ISO: DCMW 11T304FP CD10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5730902
Delivery date: 3-5 days
$192.61

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Grade and Coating Description

PVD-grade recommended for stable conditions when high metal removal is needed in medium to rough applications.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Insert Application Medium, Semi Finishing
Package Size 10
Application Turning Insert
Made In USA No
Insert Type Positive
Insert/Tool Insert
Grade CD10
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Cut Rating Aluminum, Gray Iron, High Temp
Insert Size Ic 11 "32"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Cutting Edge Mat PCD
Hand R/L Neutral
Insert Style DC
