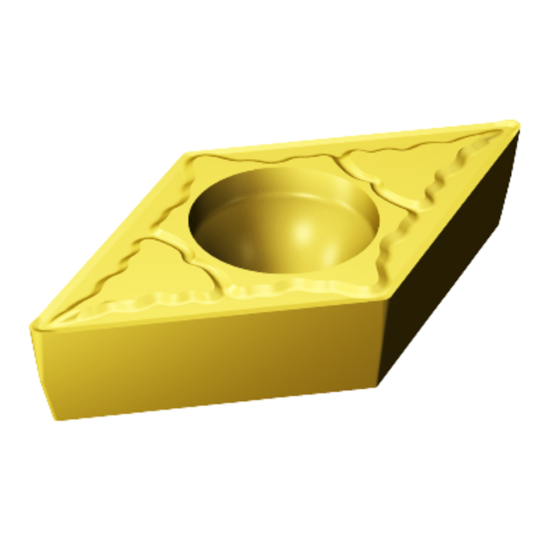

Picture of SANDVIK DCMT 2(1.5)2-Powder Metal 1525 Turning Insert 55.0°

SANDVIK DCMT 2(1.5)2-Powder Metal 1525 Turning Insert 55.0°

ANSI: DCMT 2(1.5)2-PM 1525

ISO: DCMT070208-PM 1525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5730832
Delivery date: 3-5 days
$10.52

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD TiCN+TiN STEEL GENERAL MACHINING

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Grade 1525
Insert Application Medium, Semi Finishing
Coating TiAIN + TiN
Package Size 10
Insert Type Positive
Insert/Tool Insert
Application Turning Insert
Made In USA No
Dimensional Specifications
Insert Size Ic 07 "21"
Corner Radius 0.0310 0.79MM
Cut Rating <40HRC Steel, Ductile Iron
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Hand R/L Neutral
Cutting Edge Mat Cermet
