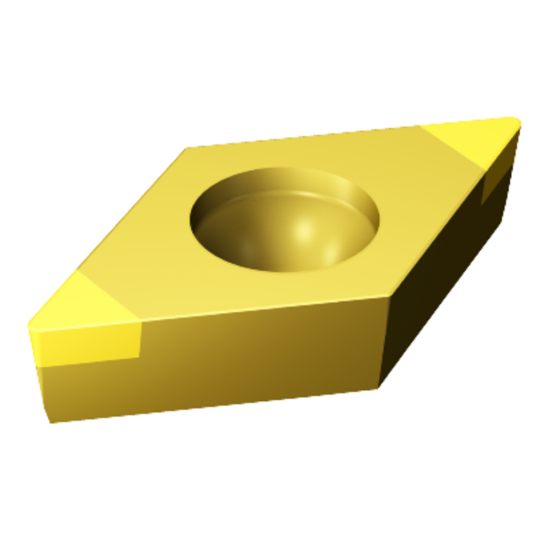

SANDVIK DCGW2(1.5)1S0320F 7115 Turning Insert 55.0°

ANSI: DCGW2(1.5)1S0320F 7115

ISO: DCGW070204S0320F 7115

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN7106081
Delivery date: 3-5 days
$78.90

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

TIN COATED First choice CBN grade for high feeds and/or depths of cut in continuous to light interrupted cuts at high speeds in case and induction hardened steels.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Grade 7115
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Medium
Application Turning Insert
Package Size 10
Insert/Tool Insert
Coating TiN
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Cut Rating >50HRC Steel
Insert Size Ic 07 "21"
Cutting & Machining Properties
Hand R/L Neutral
Cutting Edge Mat CBN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
