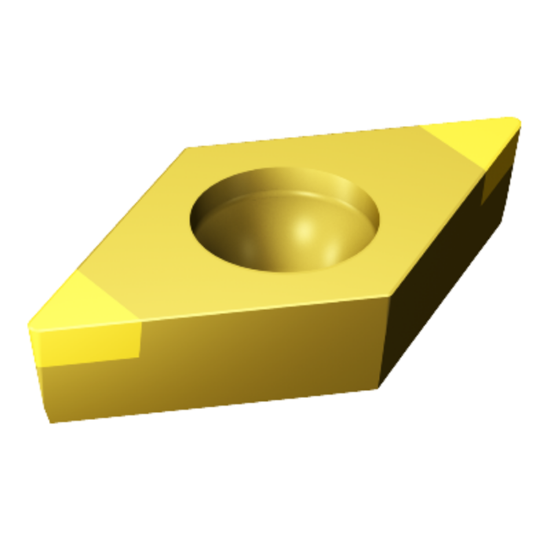

SANDVIK DCGW2(1.5)0T0330F 7015 Turning Insert 55.0°

ANSI: DCGW2(1.5)0T0330F 7015

ISO: DCGW070202T0330F 7015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5781778
Delivery date: 3-5 days
$82.50

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

TIN COATED CBN This CBN grade is your first choice for case and induction hardened steels. With its medium content of boron nitride, it is suitable for light to medium interrupted cuts.

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Made In USA No
Grade 7015
Insert Type Positive
Coating TiN
Insert Application Medium, Semi Finishing
Package Size 10
Insert/Tool Insert
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 07 "21"
Corner Radius 0.0080 0.20MM
Cut Rating >50HRC Steel
Cutting & Machining Properties
Cutting Edge Mat CBN
Insert Style DC
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape 55.0°
