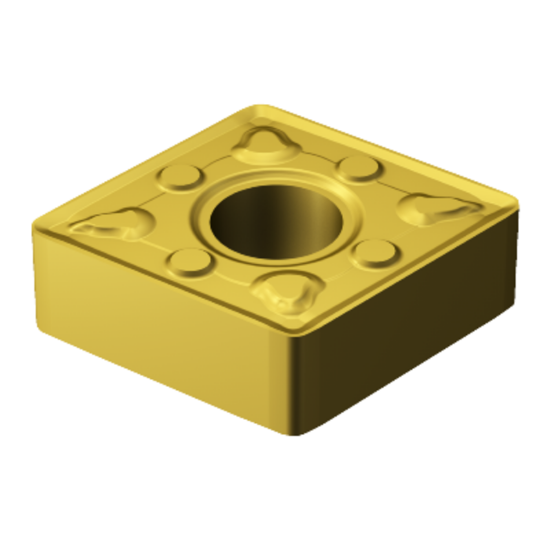

Picture of SANDVIK CNMG 433-WM 1525 Turning Insert 80.0°

SANDVIK CNMG 433-WM 1525 Turning Insert 80.0°

ANSI: CNMG 433-WM 1525

ISO: CNMG120412 WM 1525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5724908
Delivery date: 3-5 days
$17.06

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD TiCN+TiN STEEL GENERAL MACHINING

Products specifications
Attribute name Attribute value
General Product Information
Grade 1525
Insert/Tool Insert
Shipping State Illinois
Insert Application Semi Finishing, Medium
Insert Type Negative
Application Turning Insert
Made In USA No
Coating TiAIN + TiN
Package Size 10
Dimensional Specifications
Corner Radius 0.0470 1.19MM
Insert Size Ic 12 "43"
Cut Rating <40HRC Steel, Ductile Iron
Cutting & Machining Properties
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape 80.0°
Cutting Edge Mat Cermet
Insert Style CN
