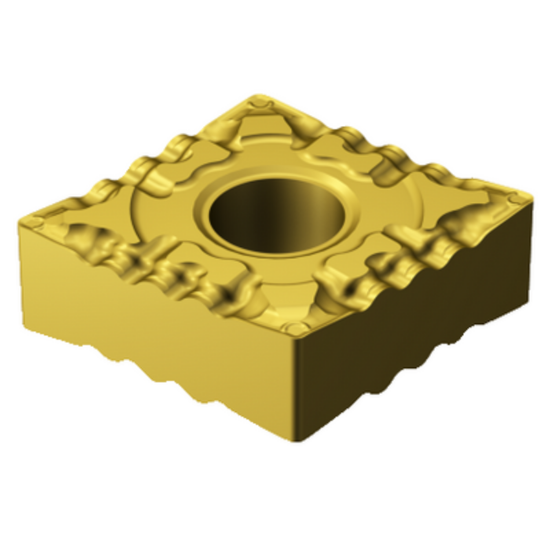

Picture of SANDVIK CNMG 322-PF 1525 Turning Insert 80.0°

SANDVIK CNMG 322-PF 1525 Turning Insert 80.0°

ANSI: CNMG 322-PF 1525

ISO: CNMG090308PF 1525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5724896
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD TiCN+TiN STEEL GENERAL MACHINING

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Coating TiAIN + TiN
Package Size 10
Insert/Tool Insert
Insert Application Semi Finishing, Finishing
Insert Type Negative
Made In USA No
Shipping State Illinois
Grade 1525
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron
Insert Size Ic 09 "32"
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Neutral
Cutting Edge Mat Cermet
