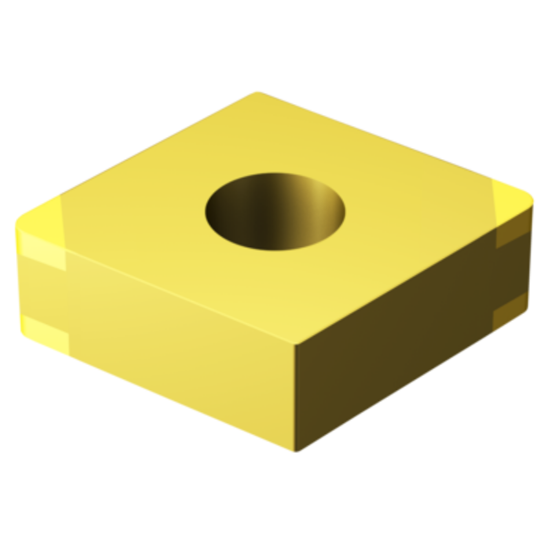

SANDVIK CNGA432S0520HWH 7105 Turning Insert 80.0°

ANSI: CNGA432S0520HWH 7105

ISO: CNGA120408S0520HWH 7105

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN7190694
Delivery date: 3-5 days
$207.03

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

TIN COATED First choice CBN grade for low feeds and continuous cuts in stable conditions at highest speeds in case and induction hardened steels.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Medium
Application Turning Insert
Package Size 10
Insert/Tool Insert
Coating TiN
Grade 7105
Dimensional Specifications
Corner Radius 0.0470 1.19MM
Cut Rating >50HRC Steel
Insert Size Ic 12 "43"
Cutting & Machining Properties
Hand R/L Neutral
Cutting Edge Mat CBN
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
