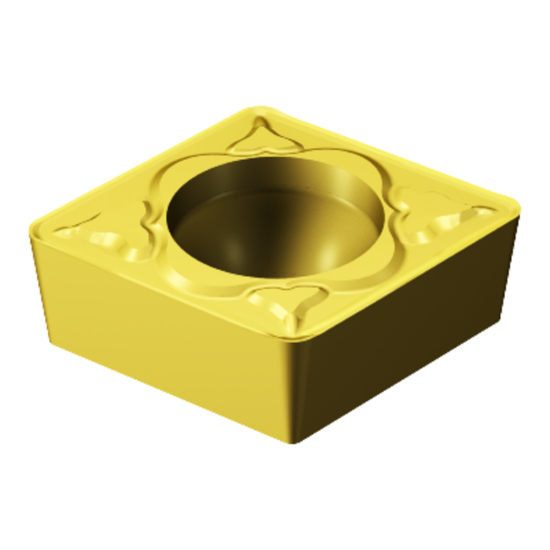

Picture of SANDVIK CCMT 2(1.5)2-Powder Metal 1525 Turning Insert 80.0°

SANDVIK CCMT 2(1.5)2-Powder Metal 1525 Turning Insert 80.0°

ANSI: CCMT 2(1.5)2-PM 1525

ISO: CCMT060208 PM 1525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5724197
Delivery date: 3-5 days
$10.45

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD TiCN+TiN STEEL GENERAL MACHINING

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Grade 1525
Insert Application Medium, Semi Finishing
Coating TiAIN + TiN
Package Size 10
Insert Type Positive
Insert/Tool Insert
Application Turning Insert
Made In USA No
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Cut Rating <40HRC Steel, Ductile Iron
Insert Size Ic 06 "21"
Cutting & Machining Properties
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Neutral
Cutting Edge Mat Cermet
