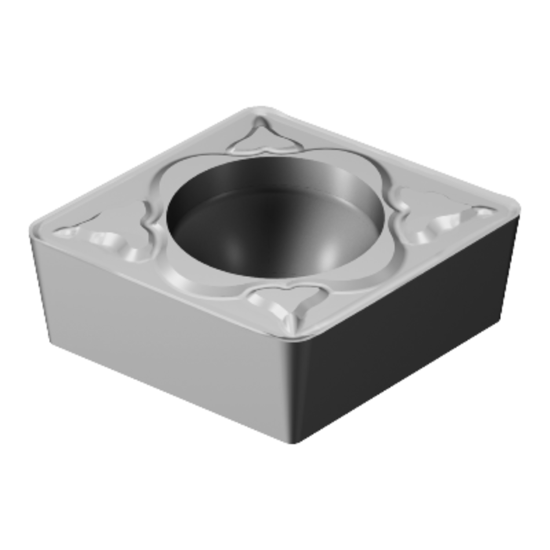

Picture of SANDVIK CCMT 2(1.5)1-Powder Metal 5015 Turning Insert 80.0°

SANDVIK CCMT 2(1.5)1-Powder Metal 5015 Turning Insert 80.0°

ANSI: CCMT 2(1.5)1-PM 5015

ISO: CCMT060204 PM 5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5724024
Delivery date: 3-5 days
$10.52

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

UNCOATED CERMET FOR STEEL MACHINGING FINISHING

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Medium
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Application Turning Insert
Insert Type Positive
Package Size 10
Grade 5015
Dimensional Specifications
Cut Rating <48HRC Steel
Insert Size Ic 06 "21"
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Hand R/L Neutral
Insert Style CC
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 80.0°
