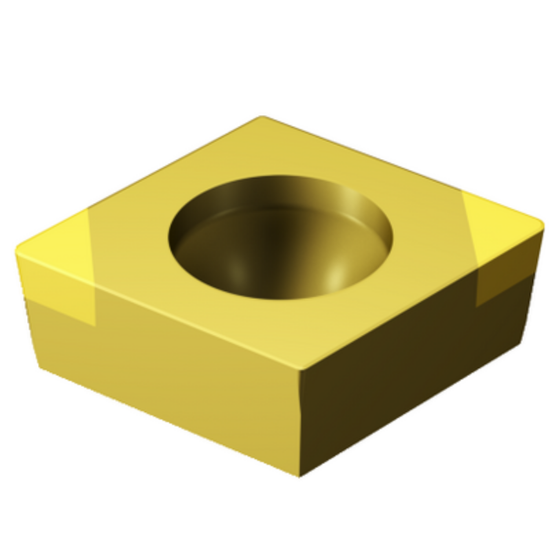

SANDVIK CCGW3(2.5)3S0520FWH 7115 Turning Insert 80.0°

ANSI: CCGW3(2.5)3S0520FWH 7115

ISO: CCGW09T312S0520FWH 7115

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN7149706
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

TIN COATED First choice CBN grade for high feeds and/or depths of cut in continuous to light interrupted cuts at high speeds in case and induction hardened steels.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Insert Type Positive
Grade 7115
Package Size 10
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Coating TiN
Application Turning Insert
Dimensional Specifications
Cut Rating >50HRC Steel
Insert Size Ic 09 "32"
Corner Radius 0.0470 1.19MM
Cutting & Machining Properties
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CC
Cutting Edge Mat CBN
