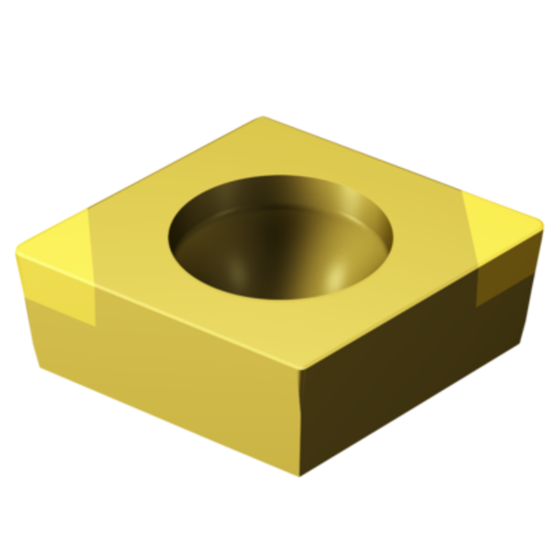

Picture of SANDVIK CCGW2(1.5)1T0320F 7525 Turning Insert 80.0° TiN CBN 0.016 Corner Radius

SANDVIK CCGW2(1.5)1T0320F 7525 Turning Insert 80.0° TiN CBN 0.016 Corner Radius

ANSI: CCGW2(1.5)1T0320F 7525

ISO: CCGW060204T0320F 7525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5965415
Delivery date: 3-5 days
$82.50

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

TIN COATED CBN grade designed for gray cast iron machining and heavy interrupted hard part turning at low to medium speeds.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Insert Type Positive
Coating TiN
Application Turning Insert
Made In USA No
Insert Application Semi Finishing, Finishing
Grade 7525
Shipping State Illinois
Package Size 10
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Graphite
Insert Size Ic 06 "21"
Cutting & Machining Properties
Cutting Edge Mat CBN
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CC
Hand R/L Neutral
