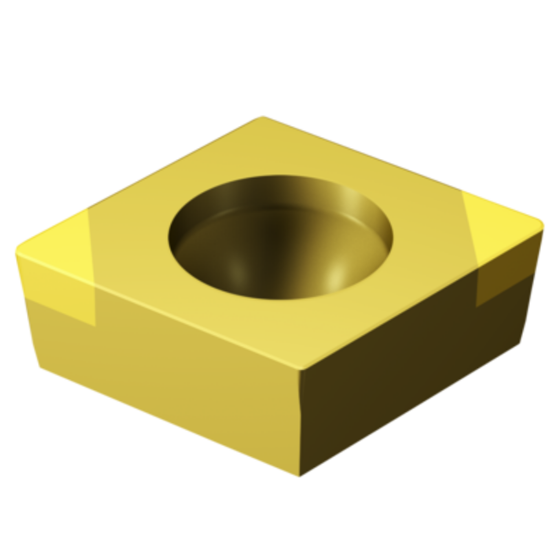

SANDVIK CCGW2(1.5)0T0330F 7015 Turning Insert 80.0°

ANSI: CCGW2(1.5)0T0330F 7015

ISO: CCGW060202T0330F 7015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5781746
Delivery date: 3-5 days
$82.50

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

TIN COATED CBN This CBN grade is your first choice for case and induction hardened steels. With its medium content of boron nitride, it is suitable for light to medium interrupted cuts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Insert Type Positive
Coating TiN
Insert/Tool Insert
Application Turning Insert
Package Size 10
Grade 7015
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating >50HRC Steel
Corner Radius 0.0080 0.20MM
Insert Size Ic 06 "21"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Neutral
Insert Style CC
Cutting Edge Mat CBN
