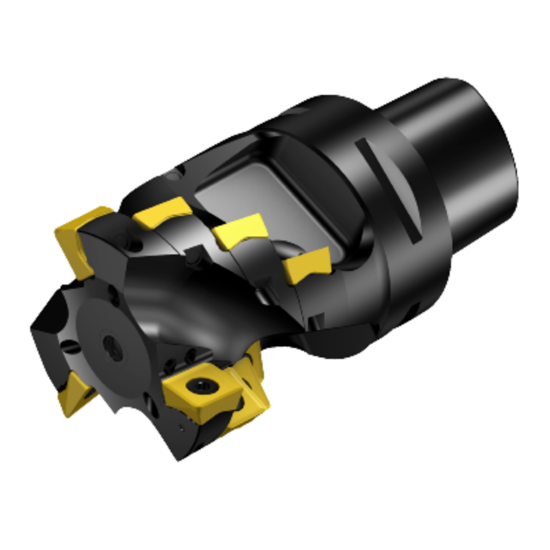

Picture of SANDVIK A690-051C6-10105H, CoroMill 690 Long Edge Square Shoulder Milling Cutter, 2" Cutting Diameter, Coromant PSC "Capto Type" C6

SANDVIK A690-051C6-10105H, CoroMill 690 Long Edge Square Shoulder Milling Cutter, 2" Cutting Diameter, Coromant PSC "Capto Type" C6

ANSI: A690-051C6-10105H

ISO: A690-051C6-10105H

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5723636
Delivery date: 3-5 days
$3,959.32
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Application Roughing
Application Long Edge Milling, Side Milling
Package Size 1
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Tool Material Steel
Shank/Pilot Dia 2.3622 60.00MM
Insert Size Ic 5
Depth Of Cut Max 4.1340
Machine Side Connection Size 2.3622 60.00MM
Flutes/Inserts 42
Machine Side Connection Type PSC "Capt0 Type"
Overall Len 5.9060 150.01MM
Cutting & Machining Properties
Insert Style 690
Coolant Thru Yes
Hand R/L Right
Cool Sply Type Internal
