  • SANDVIK A495-020M19-4509M, CoroMill 495 Chamfer Milling Cutter, 0.770" Cutting Diameter 45.0°, Chamfer Mill, Back Chamfer

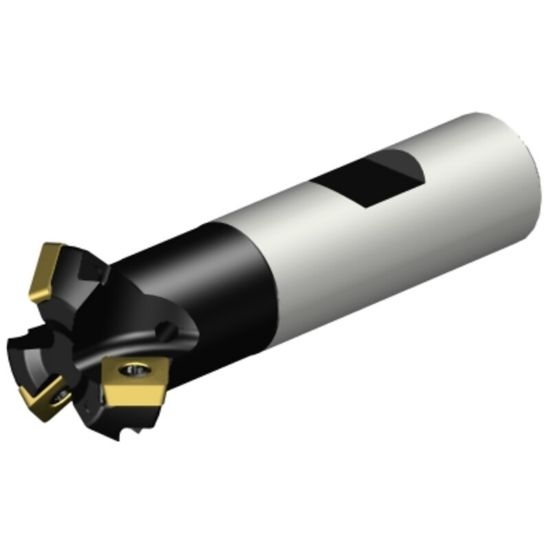

Picture of SANDVIK A495-020M19-4509M, CoroMill 495 Chamfer Milling Cutter, 0.770" Cutting Diameter 45.0°, Chamfer Mill, Back Chamfer

SANDVIK A495-020M19-4509M, CoroMill 495 Chamfer Milling Cutter, 0.770" Cutting Diameter 45.0°, Chamfer Mill, Back Chamfer

ANSI: A495-020M19-4509M

ISO: A495-020M19-4509M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN6536281
Delivery date: 3-5 days
$482.04

Details

A495-020M19-4509M Sandvik, CoroMill 495 Chamfer Milling Cutter, 0.770" Cutting Diameter

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Chamfering, Back Chamfering
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Overall Len 2.3340 59.28MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 9
Cutter Dia 0.7700 19.56MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Depth Of Cut Max 0.3040
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Cool Sply Type Internal
Insert Style 495
Coolant Thru Yes
