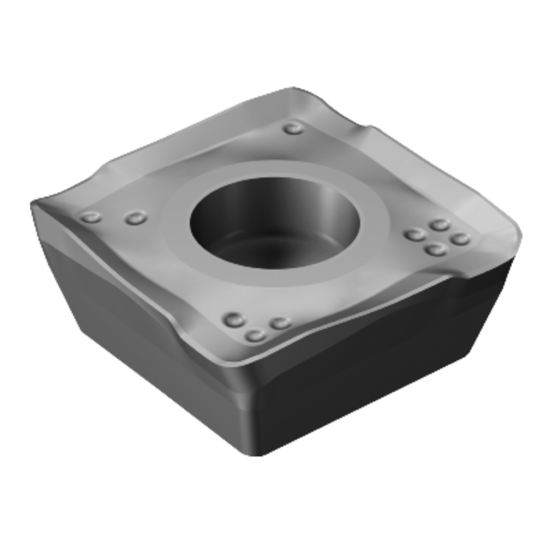

Picture of SANDVIK 490R-08T308M-PL 530 CoroMill 490 Insert; 90 degree shoulder Milling

SANDVIK 490R-08T308M-PL 530 CoroMill 490 Insert; 90 degree shoulder Milling

ANSI: 490R-08T308M-PL 530

ISO: 490R-08T308M-PL 530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5762158
Delivery date: 3-5 days
$15.38

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

490R-08T308M-PL 530 Sandvik CoroMill® 490, Cermet Insert for Milling, Uncoated

Grade and Coating Description

CERMET FOR STEEL AND STAINLESS

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing
Insert Type Positive
Grade 530
Shipping State Illinois
Package Size 10
Insert/Tool Insert
Application Milling Insert
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.2165
Insert Size Ic 8
Corner Radius 0.0320 0.81MM
Cut Rating <40HRC Steel, Stainless Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Cutting Edge Mat Cermet
Insert Style 490
