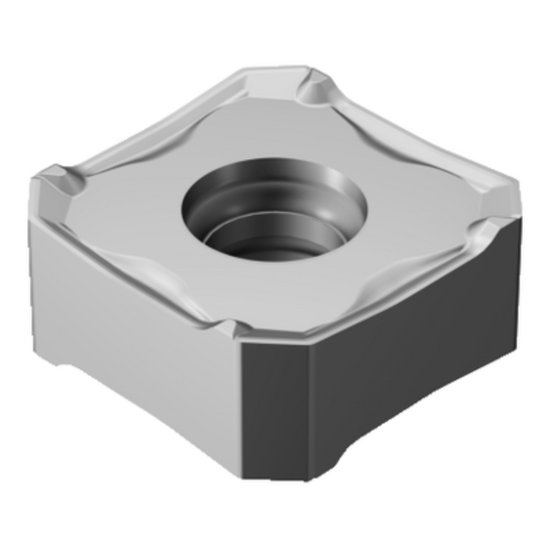

Picture of SANDVIK 345R-1305E-KM 530 CoroMill 345 Insert; 45 degree face Milling

SANDVIK 345R-1305E-KM 530 CoroMill 345 Insert; 45 degree face Milling

ANSI: 345R-1305E-KM 530

ISO: 345R-1305E-KM 530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN6289726
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

345R-1305E-KM 530 Sandvik CoroMill® 345, Cermet Insert for Milling, Uncoated

Grade and Coating Description

CERMET FOR STEEL AND STAINLESS

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert Application Medium
Package Size 10
Grade 530
Insert/Tool Insert
Application Milling Insert
Dimensional Specifications
Insert Size Ic 13
Depth Of Cut Max 0.2362
Corner Radius 0.0320 0.81MM
Cut Rating <40HRC Steel, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Cermet
Hand R/L Right
Insert Shape/Cutter Pocket Shape Square
Insert Style 345
