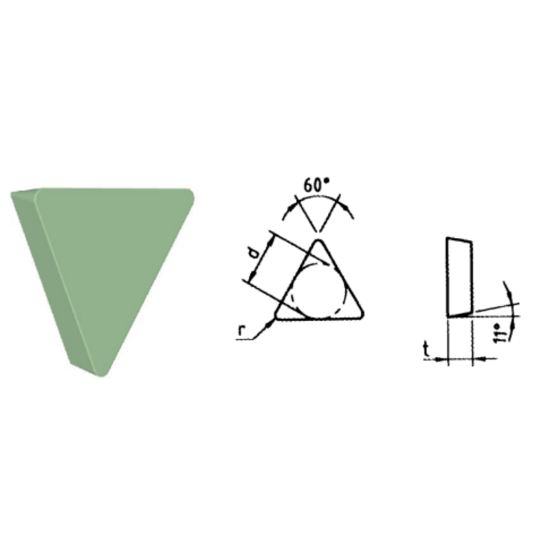

ROMAY TPGN 222 CC-515 Turning Insert Triangle Silicon Nitride 0.031 Corner Radius

ANSI: TPGN222 CC-515

ISO: TPGN110308 CC-515

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMTPGN110308 CC-515
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our silicon nitride grade for all irons, especially ductile and nodular irons. An extremely hard, wear-resistant silicon nitride for roughing and finishing at elevated speeds. Works in continuous and interrupted cuts.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Ext.Turning, Int.Turning
Package Size 10
Insert Type Positive
Shipping State Michigan
Insert Application Roughing, Semi Finishing
Made In USA No
Grade CC-515
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Cut Rating >60HRC Steel, Ductile Iron, Grey Iron
Insert Size Ic 11 "22"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Silicon Nitride
Insert Style TP
