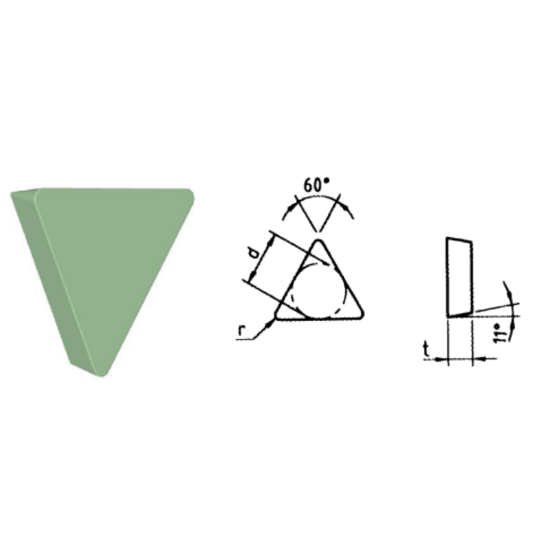

ROMAY TPGN 222 CC-513 Turning Insert Triangle Silicon Nitride 0.031 Corner Radius

ANSI: TPGN222 CC-513

ISO: TPGN110308 CC-513

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMTPGN110308 CC-513
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our toughest silicon nitride grade. Great for high-speed iron cutting with very heavy interruptions in milling, turning, boring facing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Ext.Turning, Int.Turning
Shipping State Michigan
Package Size 10
Insert/Tool Insert
Insert Type Positive
Grade CC-513
Dimensional Specifications
Cut Rating Ductile Iron, Gray Iron
Corner Radius 0.0310 0.79MM
Insert Size Ic 11 "22"
Cutting & Machining Properties
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Silicon Nitride
