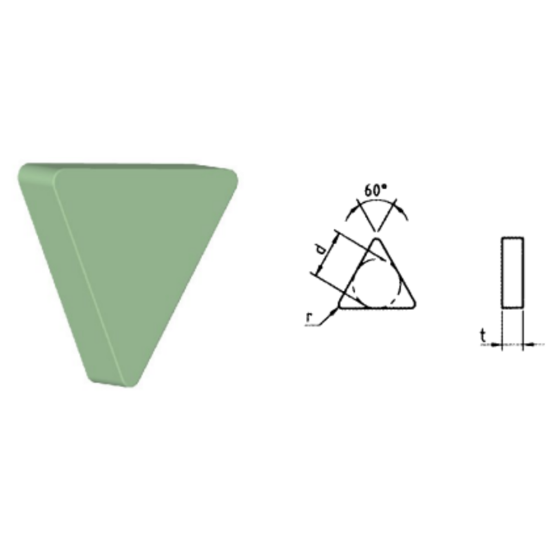

ROMAY TNGN 434 CC-510 Turning Insert Triangle Silicon Nitride 0.062 Corner Radius

ANSI: TNGN434 CC-510

ISO: TNGN220416 CC-510

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMTNGN220416 CC-510
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

A high speed, low cost silicon nitride grade with excellent wear resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning, Ext.Turning
Insert Type Negative
Insert Application Roughing
Made In USA No
Shipping State Michigan
Package Size 10
Grade CC-510
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 22 "43"
Cut Rating >60HRC Steel, Ductile Iron, Grey Iron
Corner Radius 0.0620 1.57MM
Cutting & Machining Properties
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Silicon Nitride
