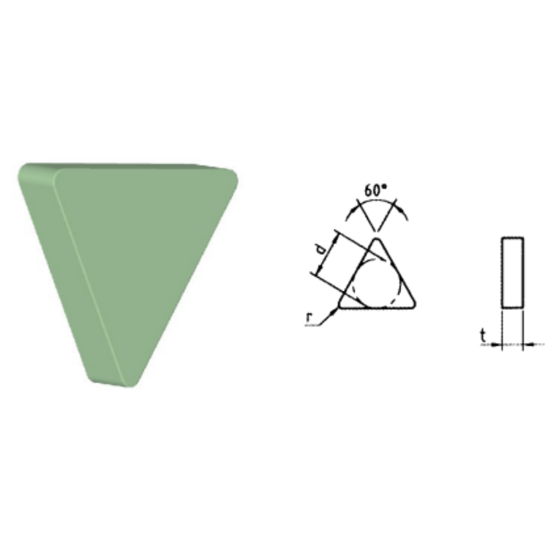

ROMAY TNGN 433 CC-513 Turning Insert Triangle Silicon Nitride 0.047 Corner Radius

ANSI: TNGN433 CC-513

ISO: TNGN220412 CC-513

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMTNGN220412 CC-513
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our toughest silicon nitride grade. Great for high-speed iron cutting with very heavy interruptions in milling, turning, boring facing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing
Made In USA No
Insert/Tool Insert
Application Ext.Turning, Int.Turning
Shipping State Michigan
Package Size 10
Grade CC-513
Dimensional Specifications
Cut Rating Ductile Iron, Gray Iron
Insert Size Ic 22 "43"
Corner Radius 0.0470 1.19MM
Cutting & Machining Properties
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Silicon Nitride
