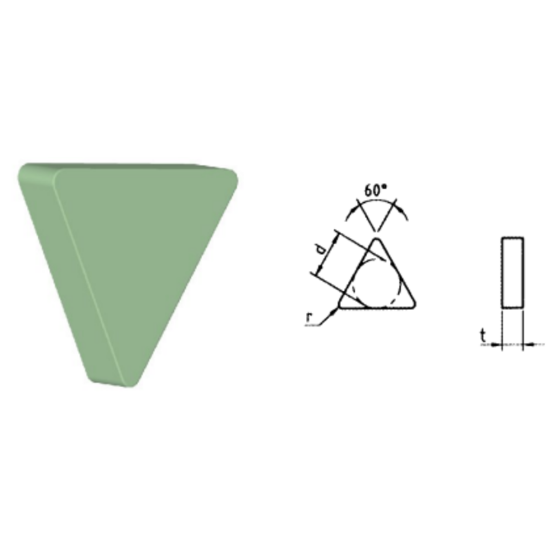

ROMAY TNGN 334 CC-514 Turning Insert Triangle Silicon Nitride 0.062 Corner Radius

ANSI: TNGN334 CC-514

ISO: TNGN160416 CC-514

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMTNGN160416 CC-514
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our medium silicon nitride grade. Great for general purpose machining of irons.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Made In USA No
Grade CC-514
Application Int.Turning, Ext.Turning
Insert/Tool Insert
Shipping State Michigan
Package Size 10
Insert Type Negative
Dimensional Specifications
Corner Radius 0.0620 1.57MM
Cut Rating Ductile Iron, Gray Iron
Insert Size Ic 16 "33"
Cutting & Machining Properties
Cutting Edge Mat Silicon Nitride
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TN
