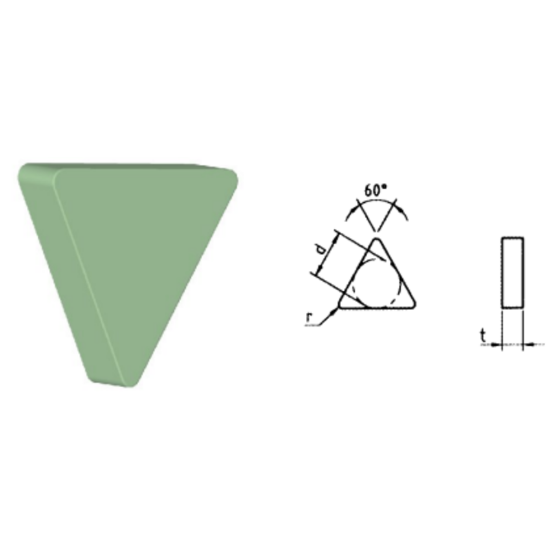

Picture of ROMAY TNGN 333 CC-510 Turning Insert Triangle Silicon Nitride 0.047 Corner Radius

ROMAY TNGN 333 CC-510 Turning Insert Triangle Silicon Nitride 0.047 Corner Radius

ANSI: TNGN333 CC-510

ISO: TNGN160412 CC-510

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMTNGN160412 CC-510
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

A high speed, low cost silicon nitride grade with excellent wear resistance.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Application Ext.Turning, Int.Turning
Shipping State Michigan
Grade CC-510
Insert/Tool Insert
Insert Application Roughing
Package Size 10
Dimensional Specifications
Corner Radius 0.0470 1.19MM
Cut Rating >60HRC Steel, Ductile Iron, Grey Iron
Insert Size Ic 16 "33"
Cutting & Machining Properties
Cutting Edge Mat Silicon Nitride
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TN
