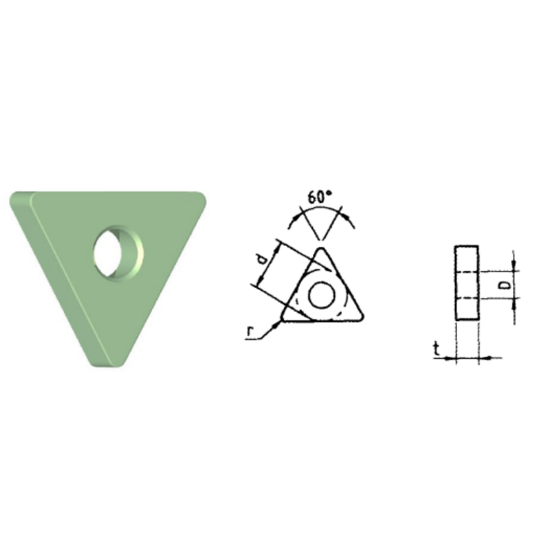

ROMAY TNGA 432 CC-515 Turning Insert Triangle Silicon Nitride 0.031 Corner Radius

ANSI: TNGA432 CC-515

ISO: TNGA220408 CC-515

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMTNGA220408 CC-515
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our silicon nitride grade for all irons, especially ductile and nodular irons. An extremely hard, wear-resistant silicon nitride for roughing and finishing at elevated speeds. Works in continuous and interrupted cuts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Int.Turning, Ext.Turning
Shipping State Michigan
Package Size 10
Grade CC-515
Insert Type Negative
Made In USA No
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 22 "43"
Corner Radius 0.0310 0.79MM
Cut Rating >60HRC Steel, Ductile Iron, Grey Iron
Cutting & Machining Properties
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Silicon Nitride
