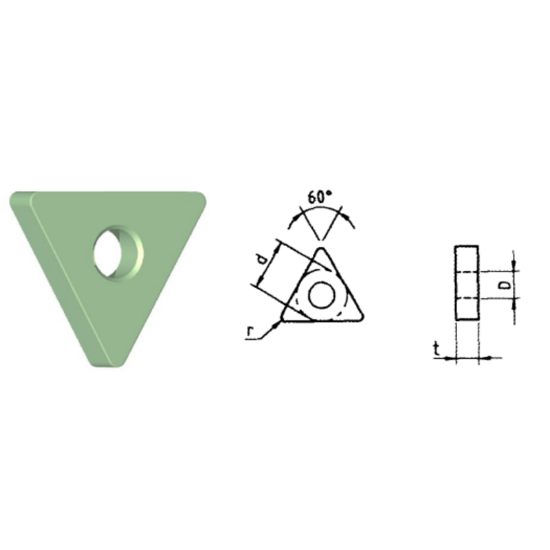

ROMAY TNGA 333 CC-515 Turning Insert Triangle Silicon Nitride 0.047 Corner Radius

ANSI: TNGA333 CC-515

ISO: TNGA160412 CC-515

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMTNGA160412 CC-515
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our silicon nitride grade for all irons, especially ductile and nodular irons. An extremely hard, wear-resistant silicon nitride for roughing and finishing at elevated speeds. Works in continuous and interrupted cuts.

Products specifications
Attribute name Attribute value
General Product Information
Grade CC-515
Insert/Tool Insert
Insert Type Negative
Insert Application Roughing
Made In USA No
Application Int.Turning, Ext.Turning
Shipping State Michigan
Package Size 10
Dimensional Specifications
Corner Radius 0.0470 1.19MM
Insert Size Ic 16 "33"
Cut Rating >60HRC Steel, Ductile Iron, Grey Iron
Cutting & Machining Properties
Cutting Edge Mat Silicon Nitride
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
