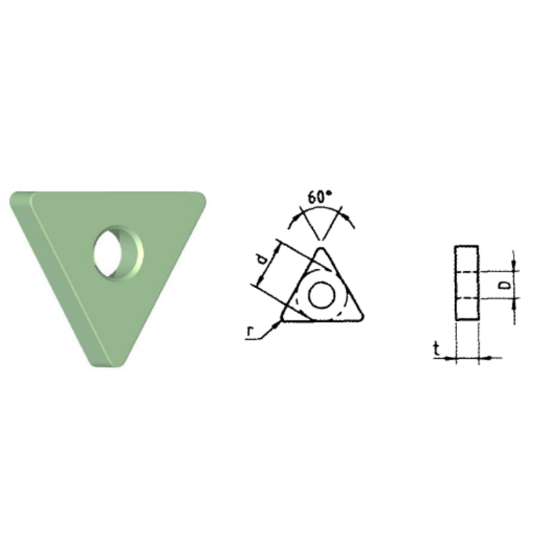

Picture of ROMAY TNGA 333 CC-514 Turning Insert Triangle Silicon Nitride 0.047 Corner Radius

ROMAY TNGA 333 CC-514 Turning Insert Triangle Silicon Nitride 0.047 Corner Radius

ANSI: TNGA333 CC-514

ISO: TNGA160412 CC-514

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMTNGA160412 CC-514
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our medium silicon nitride grade. Great for general purpose machining of irons.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Ext.Turning, Int.Turning
Package Size 10
Grade CC-514
Insert Type Negative
Insert Application Roughing
Made In USA No
Shipping State Michigan
Dimensional Specifications
Corner Radius 0.0470 1.19MM
Insert Size Ic 16 "33"
Cut Rating Ductile Iron, Gray Iron
Cutting & Machining Properties
Cutting Edge Mat Silicon Nitride
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
