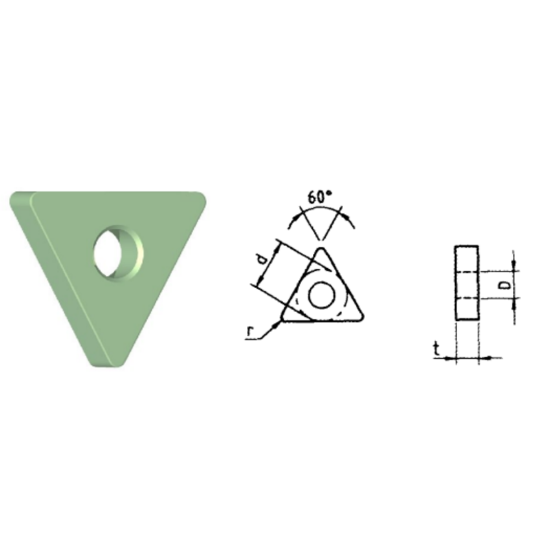

ROMAY TNGA 331 CC-513 Turning Insert Triangle Silicon Nitride 0.016 Corner Radius

ANSI: TNGA331 CC-513

ISO: TNGA160404 CC-513

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMTNGA160404 CC-513
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our toughest silicon nitride grade. Great for high-speed iron cutting with very heavy interruptions in milling, turning, boring facing.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Int.Turning, Ext.Turning
Insert Type Negative
Grade CC-513
Made In USA No
Insert Application Finishing
Shipping State Michigan
Package Size 10
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Insert Size Ic 16 "33"
Cut Rating Ductile Iron, Gray Iron
Cutting & Machining Properties
Cutting Edge Mat Silicon Nitride
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
